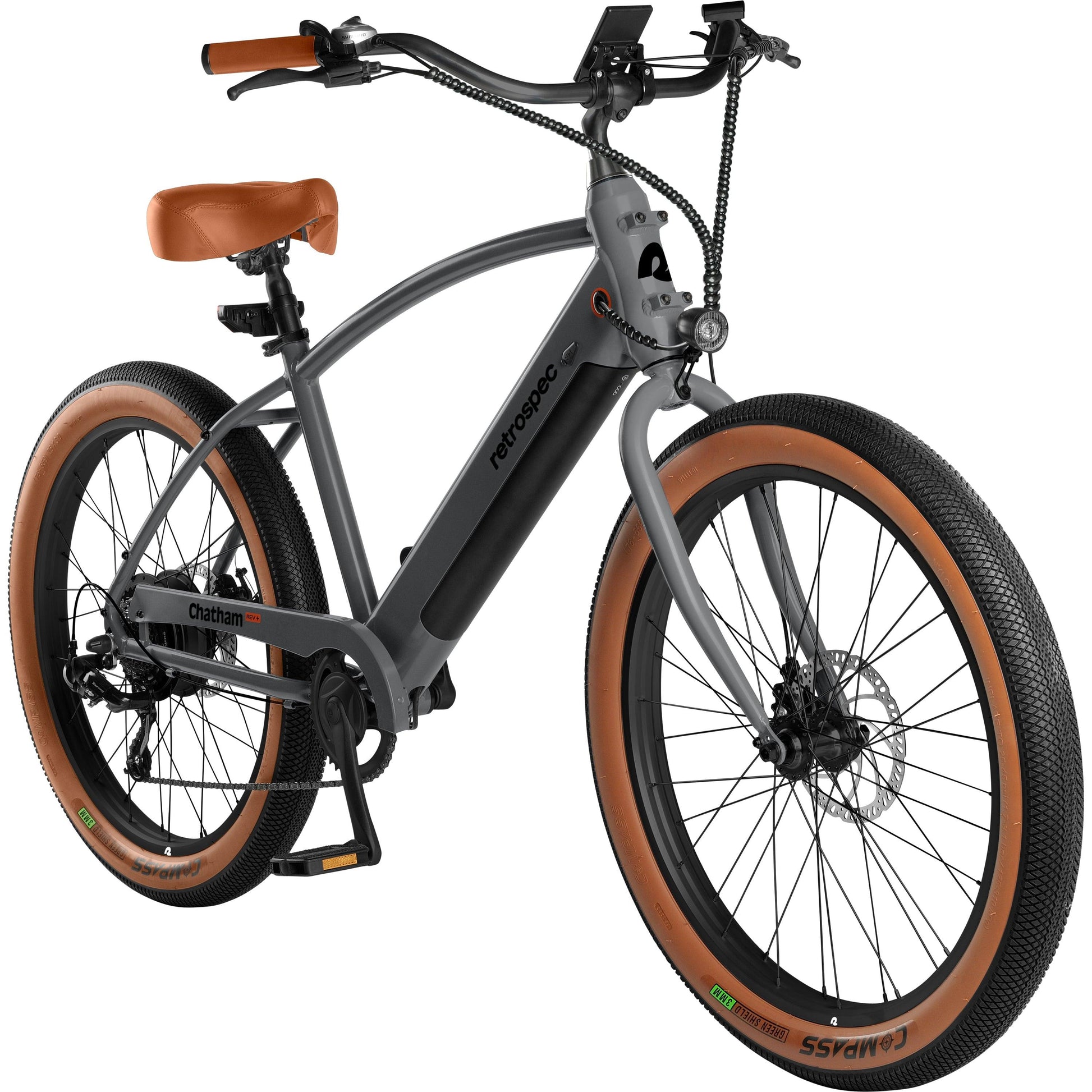

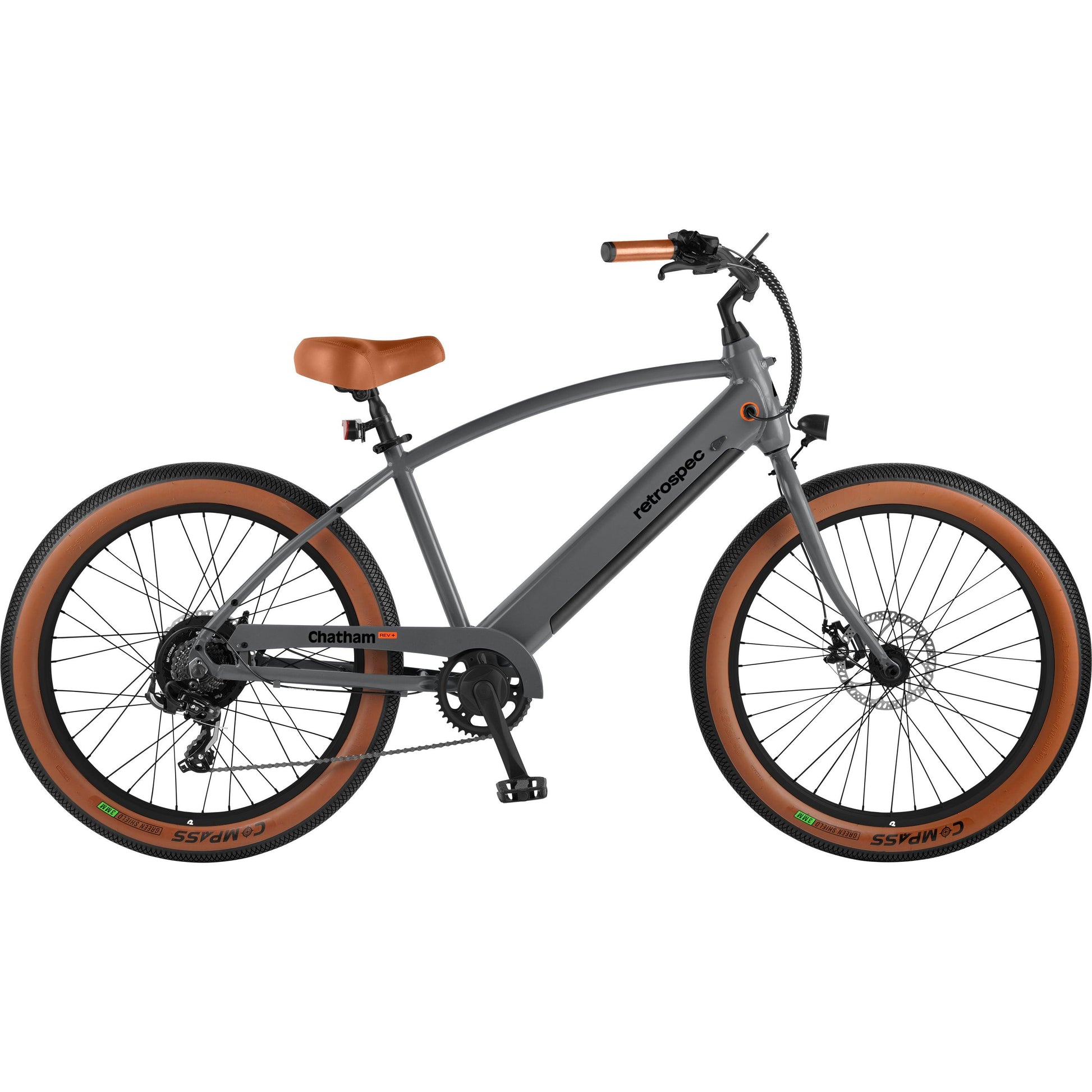

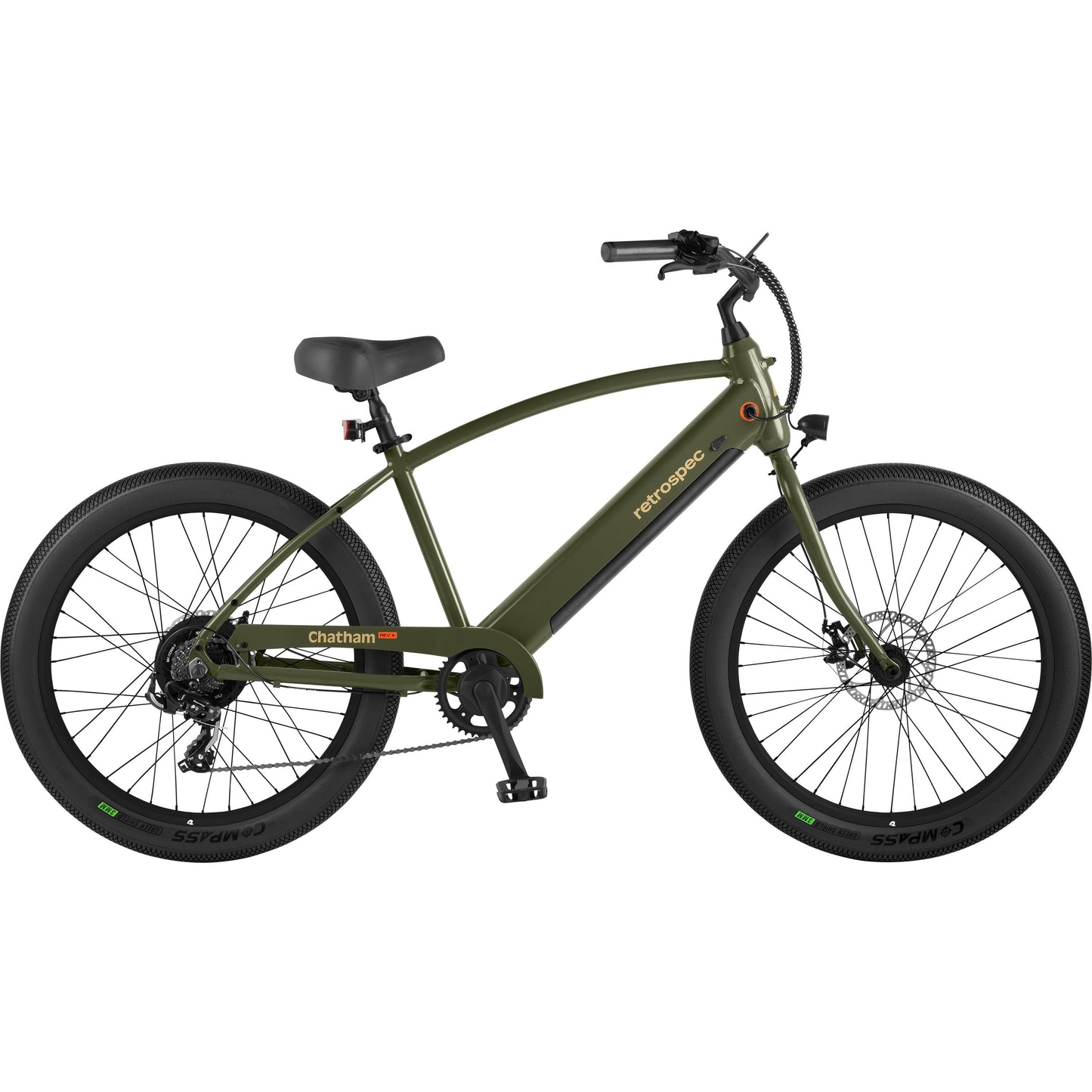

Not your average beach cruiser.
Casual comfort meets modern luxury in Chatham Rev+. This electric cruiser expertly marries powerful, state-of-the-art conveniences with the classic comfort features you love on your regular beach bike – making for the perfect best-of-both-worlds experience. With a powerful motor and battery offering an improved range of 35+ miles, you can cruise all day long; and with Pedal Assist, throttle, wide tires, and an upright riding position, you’ll stay comfortable the whole time. Then, when your adventure is done for the day, turn on your front and rear lights and enjoy taking the long way home.
Make every day a Sunday
Your average leisurely bike ride just got a major upgrade. Chatham Rev+ celebrates the classic beach cruiser, uniting its most-loved comfort features with the newest tech to carry your coastal adventures into the modern era. You can explore farther with a fully integrated 48V/500Wh battery that offers a range of 35+ miles per charge and can be charged on or off the bike. Plus, with 6 pedal assistance levels, full throttle, and a 500-watt rear hub motor to boot, you’ll find the once-intimidating trails and inclines are now a piece of cake. Bumps? Cracks? Flat tires? We’ve never heard of them. You won’t feel the little imperfections in the road underneath 3-inch-wide, grippy tires that are extra durable and reinforced with puncture protection – it’s nothing but smooth cruising with Chatham Rev+.

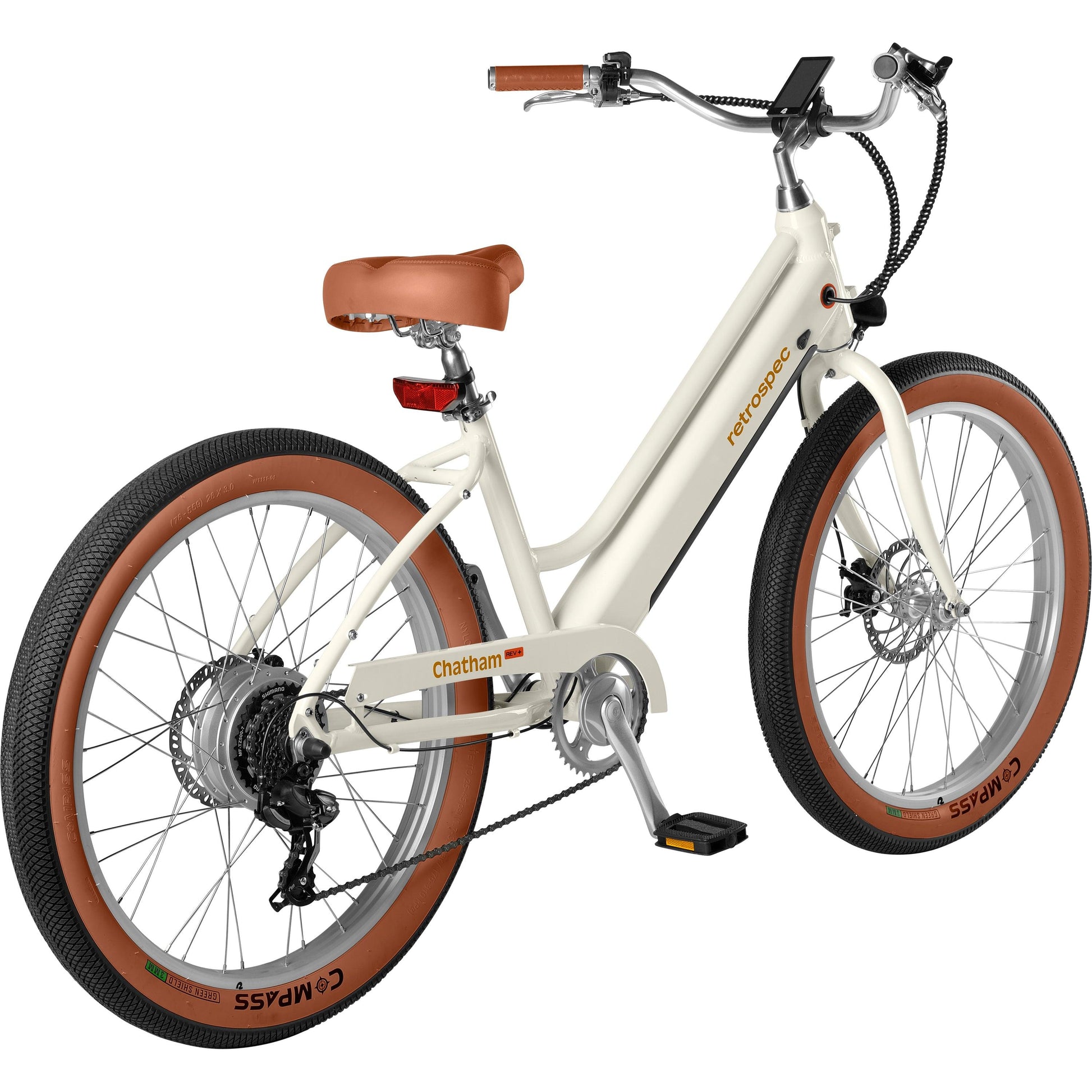

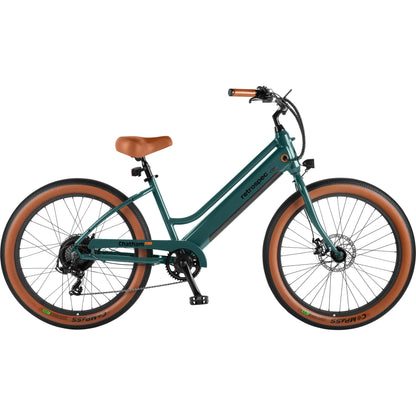

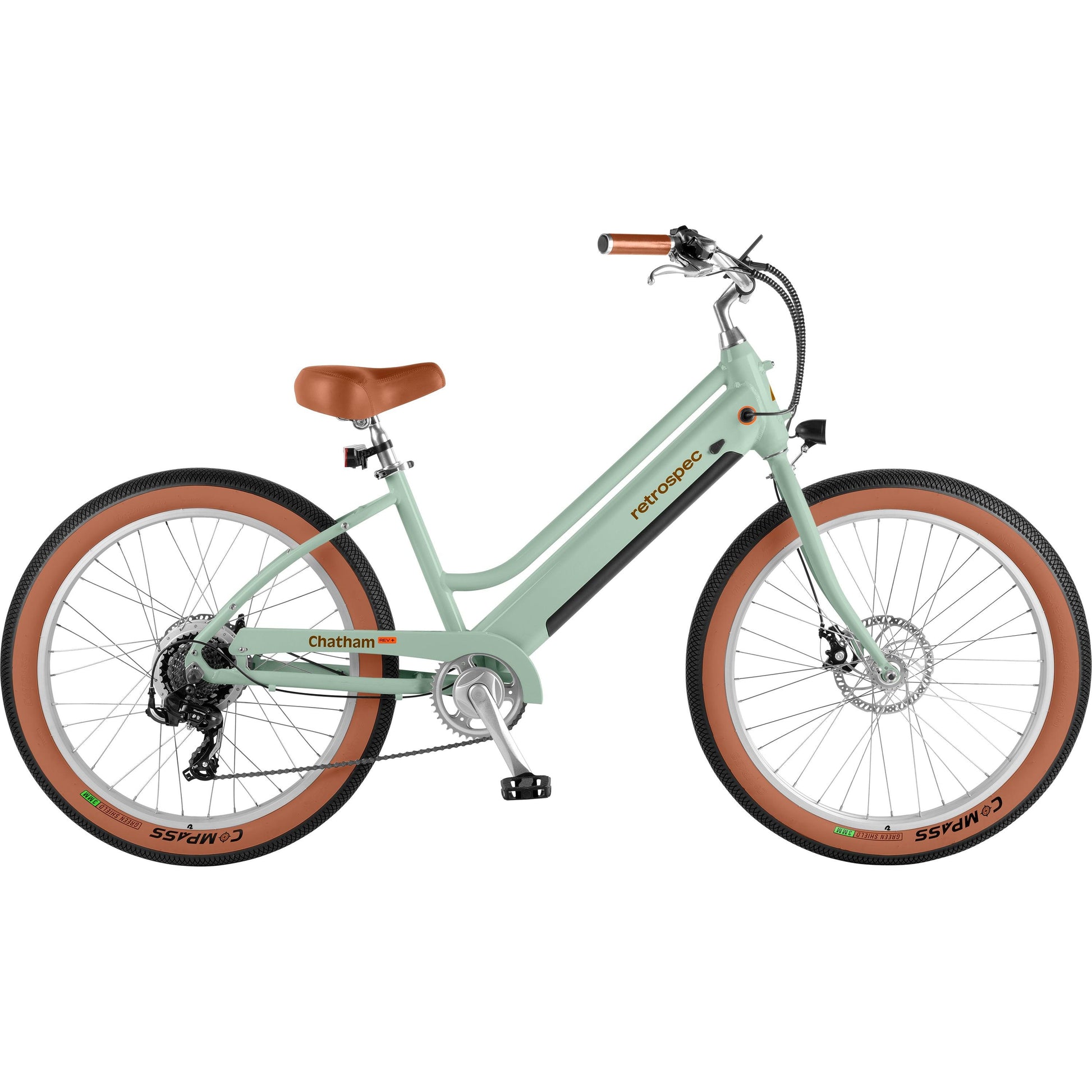

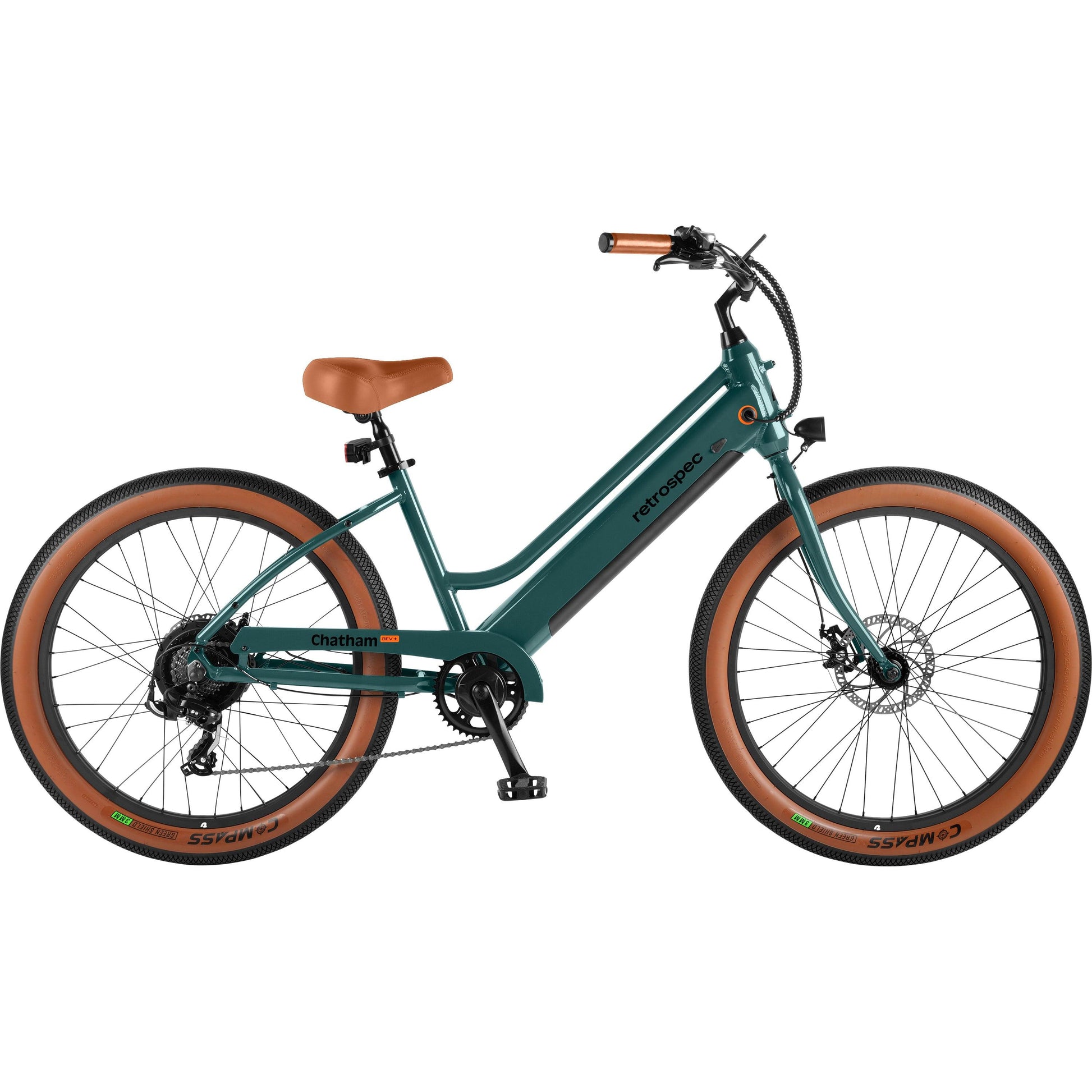

Hop On With Ease

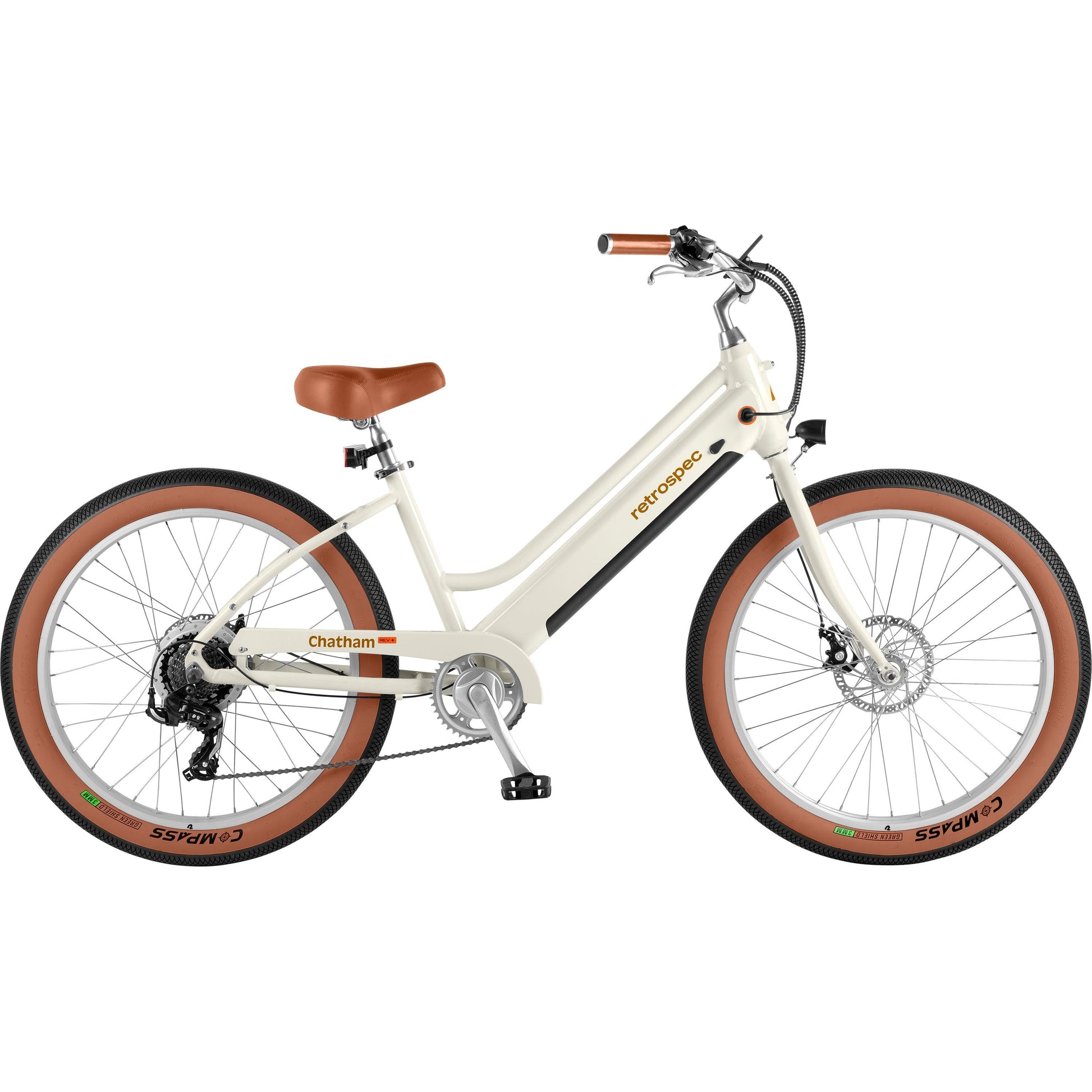

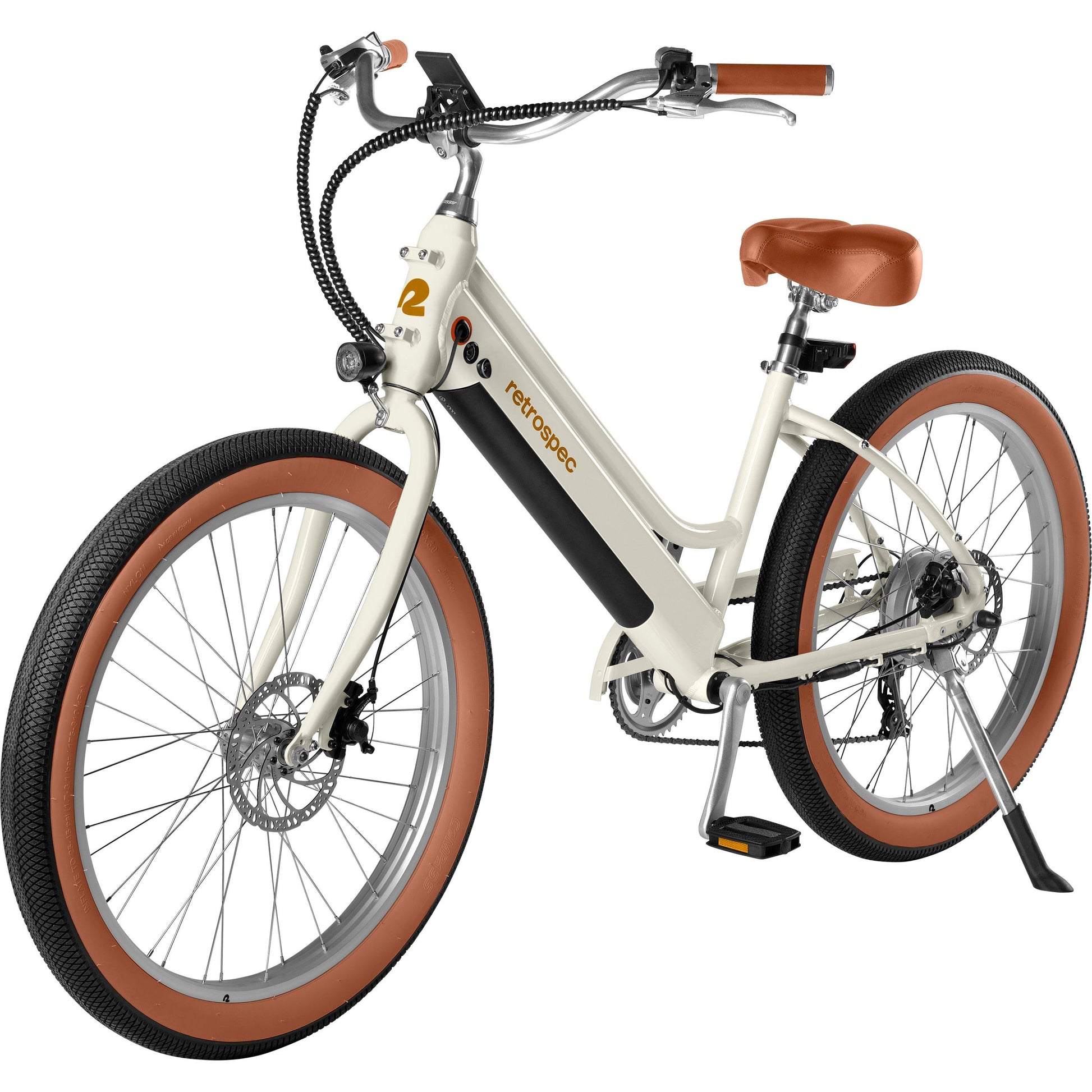

Getting on and off your bike has never been easier, thanks to an accessible step through frame shape that also allows for a comfortable, upright riding position.
Easy Access to Controls
The handlebar-mounted button pod controls everything, from the throttle, to the headlight, to walk mode, pedal assistance, and more – all right at your fingertips.

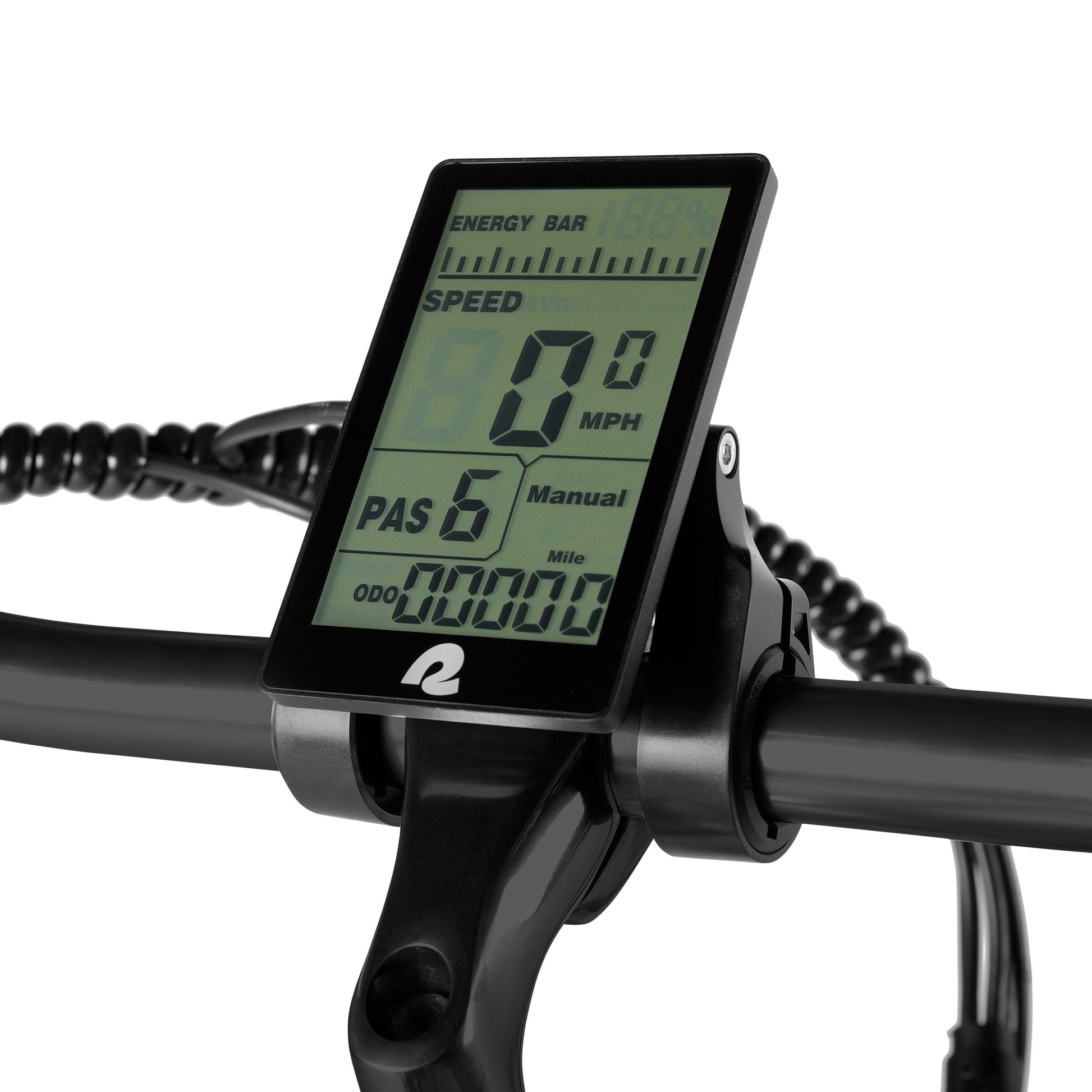

Center-Mounted B/W Display
The black-and-white LCD screen is large and high-contrast, making it easy to read in the bright sun – at a glance, you can keep track of your bike’s battery level, Pedal Assist mode, speed, and more with your eyes on the road.

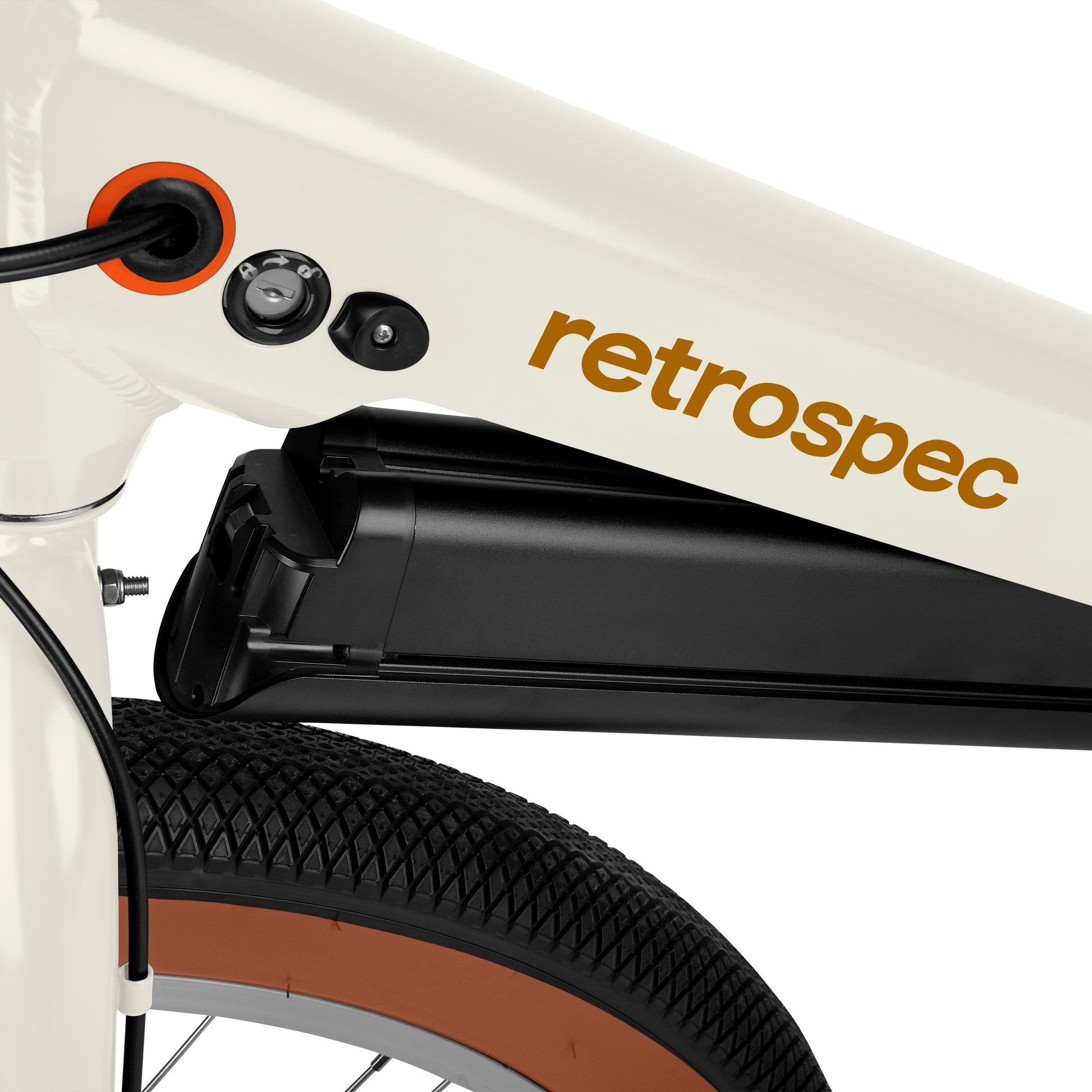

On- or Off-Bike Charging
This e-bike’s fully integrated battery is uniquely able to be charged both on and off the bike. It also uses LG 21700 cells to store more energy and offer a 35+ mile range when fully charged.
Push to Go
Convenient thumb throttle puts 500W worth of power at your fingertips and leaves plenty of room to comfortably grip the handlebars. Simply push the throttle to be propelled at speeds up to 20mph.
Specification
FRAMESET
- Sizes16.5" Step Through
- Materia lAlloy, 6061
- Dropouts1x rear fender eyelets, rear rack mounts,
- Replaceable Der Hanger Yes
- Fork Steel
WHEELSET
- Rims Alloy 36H for disc brake
- Hubs Alloy bolt on 17mm nut
- Spokes13G/2.3mm w/brass nipples
- Tires26x3.0 with puncture protection
E-POWER SYSTEM
- Motor48V/500W geared
- Drive ModePAS/Thumb throttle Left side , cadence sensor
- Display B&W LCD center mount display with 6 levels of asist, anytime throttle and walk mode.
- Charge Time (empty to full)Approximately 5-6hrs hrs.
- Range52+ miles
- Battery500Wh/48VLG 21700 cells; Charge on or off bike
DRIVETRAIN
- Derailleur - RearShimano Tourney 7 speed
- Shifter(s)Shimano Tourney 7 speed

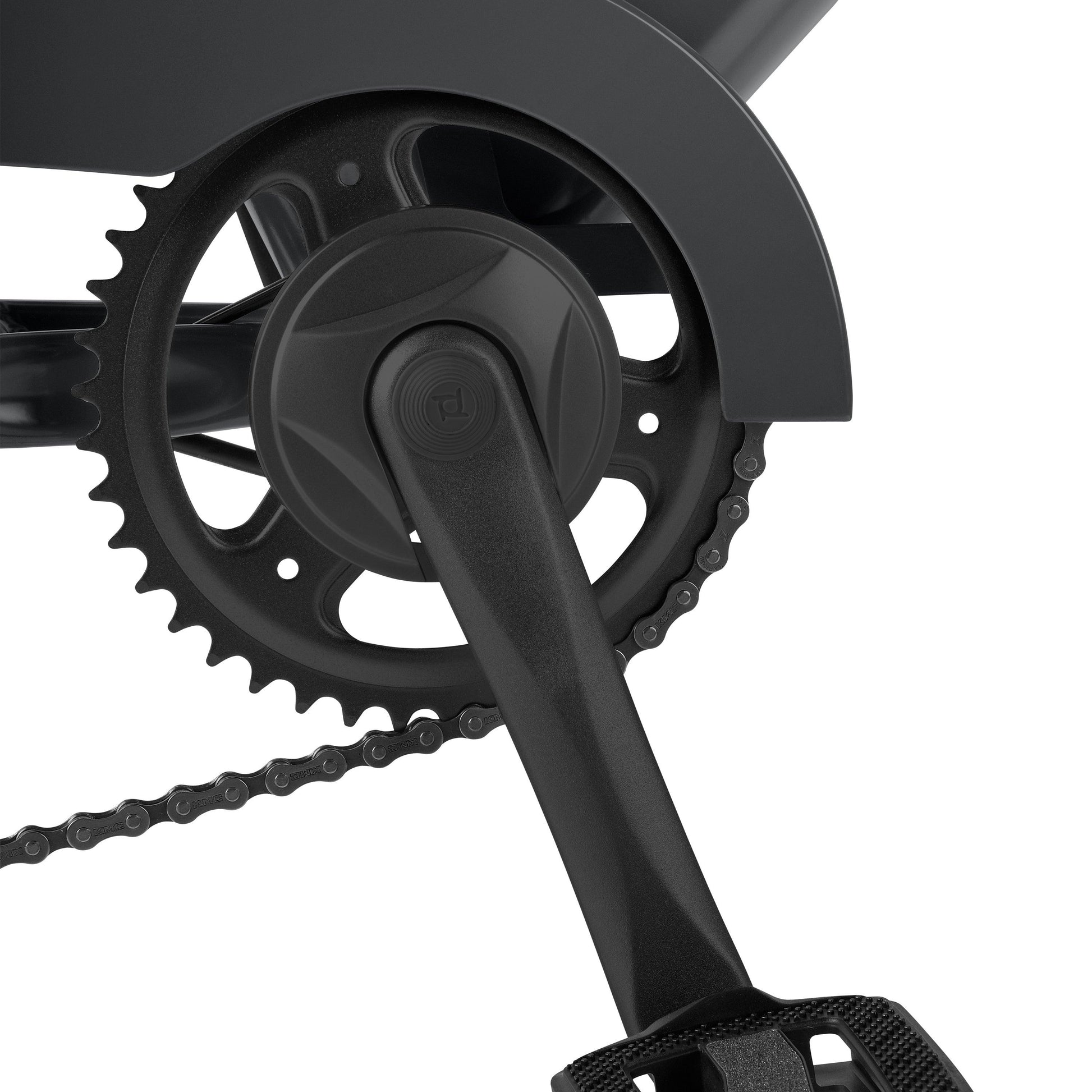

- Crankset42T alloy
- Chain KMC Z7
- BBJIS square taper cartridge
- Freewheel/CogShimano 14-34T
COMPONENTS
- Headset Threaded,, 1 1/8"
- Brakes Tektro mechanical with 180mm rotors and semi-metallic pads
- Handlebars Alloy cruiser
- Grips Comfort with alloy lock rings
- Stem Alloy quill
- Saddle Comfort Cruiser
- Seatpost Alloy 25.4mm x 350mm
- Seatpost Clamp Alloy QR
- Pedals PP platform 9/16"
EXTRAS
- Kickstand Rear mount, adjustable, aluminum alloy

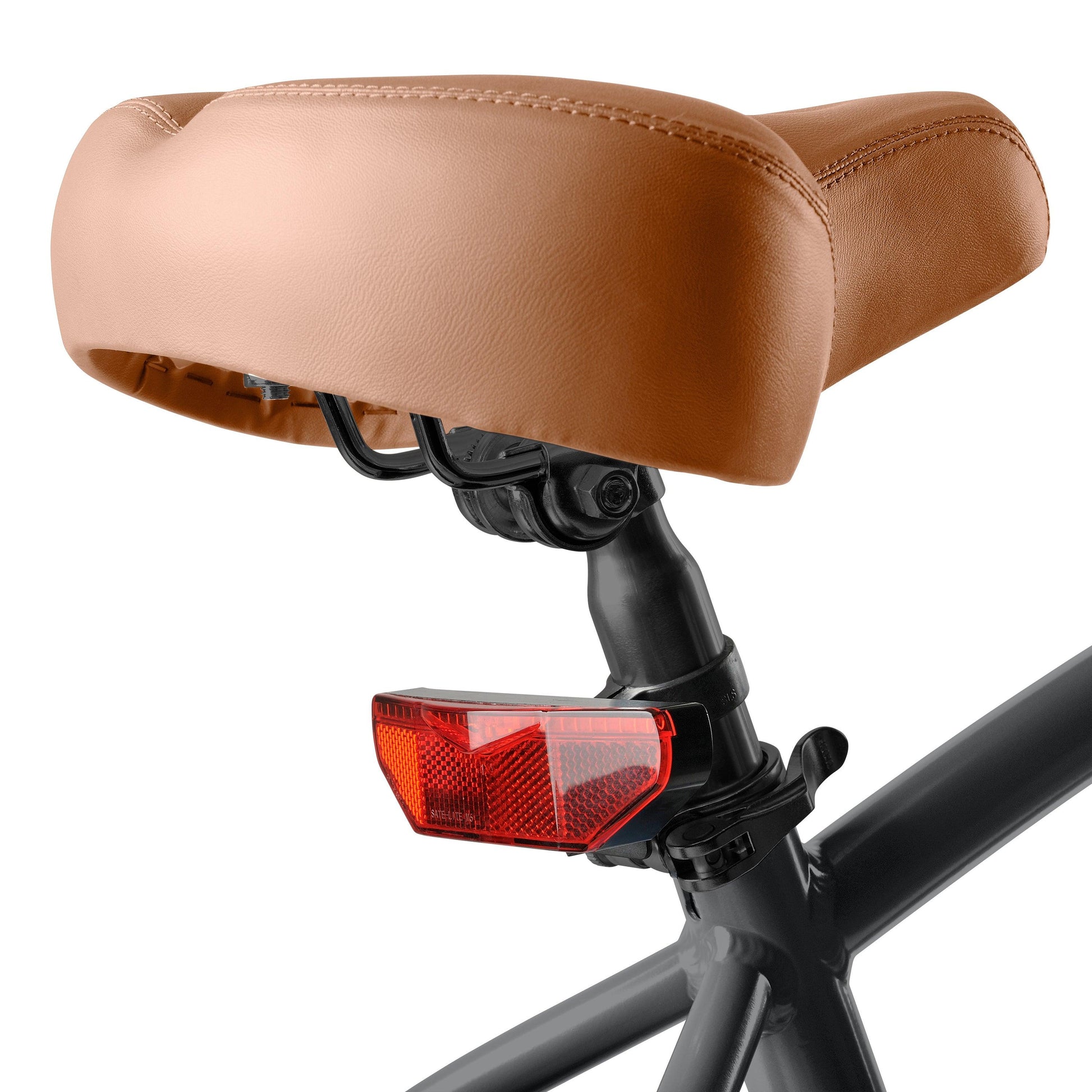

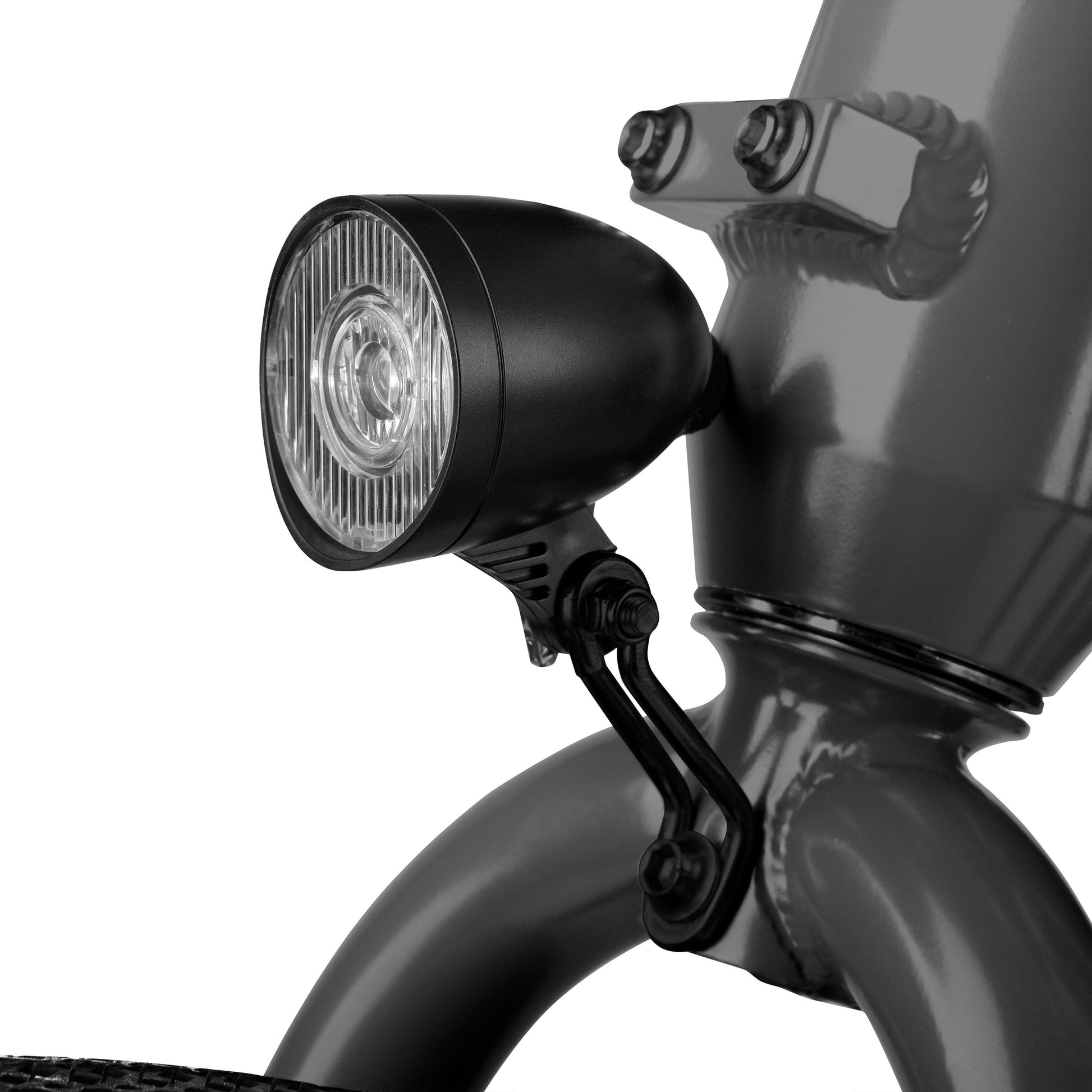

- Light(s)Integrated/system operated front light w/ battery operated rear light
- Chain cover Full Coverage
- Tools2/3/4/5/6mm hex wrench; 8/10/15/17mm open wrench; 13g spoke wrench
- Recommended Weight Limit350lbs
