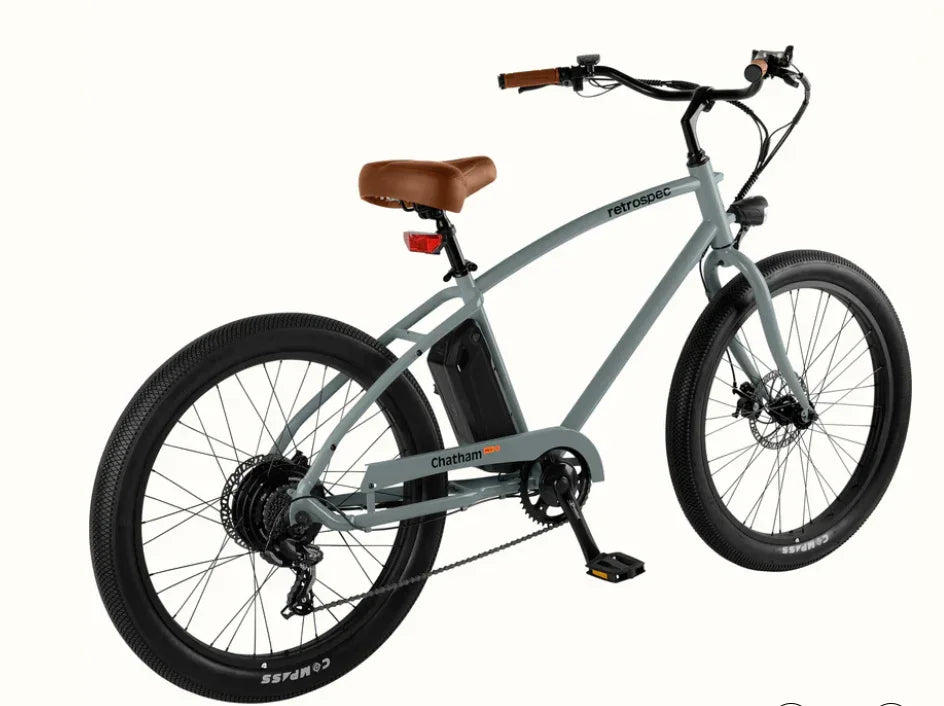

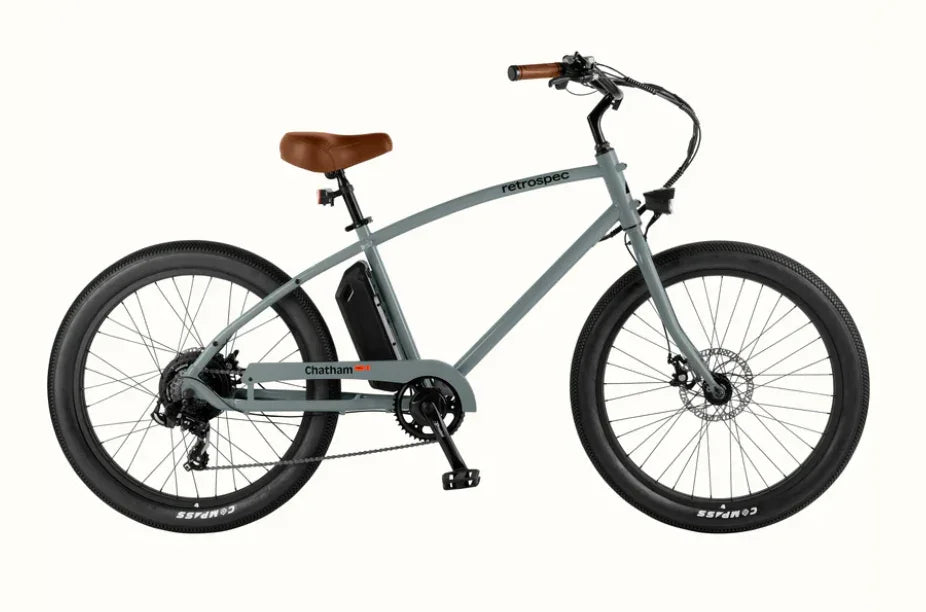

Chatham Rev 2 Beach Cruiser High Step Electric Bike
Quick Access to Controls

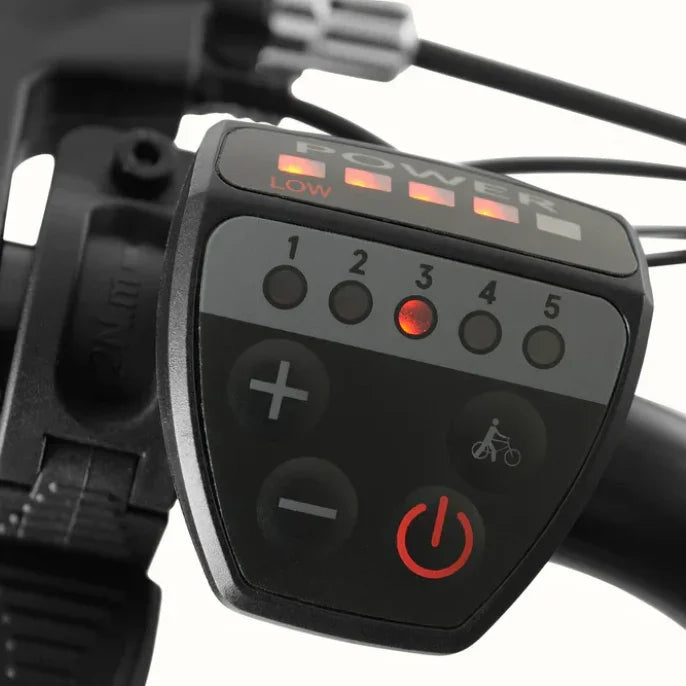

Handlebar-mounted, easy-read LED control panel indicates battery level and controls Pedal Assist and Walk Mode, and the easy-to-reach thumb throttle puts 350W worth of power at your fingertips.
Durable, Long-Lasting, High Range
Li-ion battery offers a range of up to 38 miles. Charges within 4-5 hours.
Quiet, Consistent Braking
Tektro mechanical disc brakes are generally easier to maintain, and ebike-specific 180mm rotors offer more reliable stopping power, so you can brake confidently in all kinds of weather conditions.
Specifications
Frameset
- Sizes18" Step Over
- MaterialSteel
- Dropouts1x rear fender eyelets, rear rack mounts,
- ForkSteel
Wheelset
- RimsAlloy 36H for disc brake
- HubsAlloy bolt on 17mm nut
- Spokes13G/2.3mm w/brass nipples
- Tires26 x 3.0
E-Power System
- 36V/350W Motor
- Drive Mode, DisplayPAS/Thumb throttle Left side , cadence sensor
- DisplayLED
- Charge Time (empty to full)(350 & 500W): Approximetly 4.5hrs.
- 36V/350W range38+ miles
- UL TestingUL2849 & UL2271 Certified
- Pedal Assist5 levels with anytime throttle and walk mode
Drivetrain
- Derailleur - RearShimano Tourney 7S
- Shifter(s)Shimano Tourney 7 speed
- Crankset42T alloy
- ChainKMC Z7
- BBJIS square taper cartridge
- Freewheel/CogShimano 14-34T
Components
- HeadsetThreaded, steel, 1 1/8"
- BrakesTektro mechanical with 180mm rotors and semi-metalic pads [OEM Replacement Pads: Tektro P20.11/Resin for 2-Piston Other pads that will fit: Tektro E10.11/Organic, A11TS/Sintered, A10YS.]
- HandlebarsAlloy cruiser
- GripsComfort with alloy lock rings
- StemAlloy quill
- SaddleComfort Cruiser
- SeatpostAluminum 28.6mm diameter, 350mm length
- Seatpost ClampAlloy QR
- PedalsPP platform 9/16"
Extras
- KickstandRear mount, adjustable, aluminum alloy
- Light(s)Battery operated front and rear lights
- ChaincoverFull Coverage
- All-In-One Tool Included2/3/4/5/6mm hex wrench; 8/10/15/17mm open wrench; 13g spoke wrench
- Recommended Weight Limit350lbs / 158kgs not including bike weight.
- Item Weight59lbs
Cruise Smoothly
Extra wide and grippy 3” tires roll right over bumps for a smooth ride, and a versatile Shimano 7-speed Mega-Range drivetrain makes riding uphill or into headwinds a breeze.
Superior Grip All Around
Sweaty palms and slippery shoes have met their match with comfortable, nonslip handlebar grips, and pedals.
Sunset-Ready Front & Rear Lights
Don’t let the sun set on your adventures. This bike is equipped with battery-operated lights in the front and back so you won’t have to worry about getting back before dark.
Easy-Change Rear Wheel Removal System
retrospec’s proprietary easy-change system allows you to easily remove and replace the rear wheel whenever you need to take a look under the metaphorical hood.
Customize to Meet Your Needs
With mounting points to easily add a rear rack, basket, fenders, and more, you can redesign your ride to be tailored to your adventures.
Comfortable Riding Position
Swingback handlebars and a padded saddle promote a comfortable and relaxed upright riding position, and a lower center of gravity makes the ebike easier to handle in all situations.
