If you're not cruisin', you're losin'
Take it easy. Chatham Rev 2 was designed to support the most effortless, relaxing adventures by adding electric power to every beachside joyride. With comfort and ease at the forefront of every design choice, this modern electric cruiser takes the classic, carefree beach cruiser bike to the next level: The powerful battery and rear hub motor will carry you up the coast with Walk Mode, Pedal Assist, full throttle up to 20 mph, and a range of 38+ miles, and thoughtful features like a padded saddle, nonslip grips and pedals, and sweptback handlebars will keep you comfortable the whole time. Plus, with more customization options than other bikes, you can tailor your bike to fit your adventures by adding a basket, rear rack, fenders, and more.

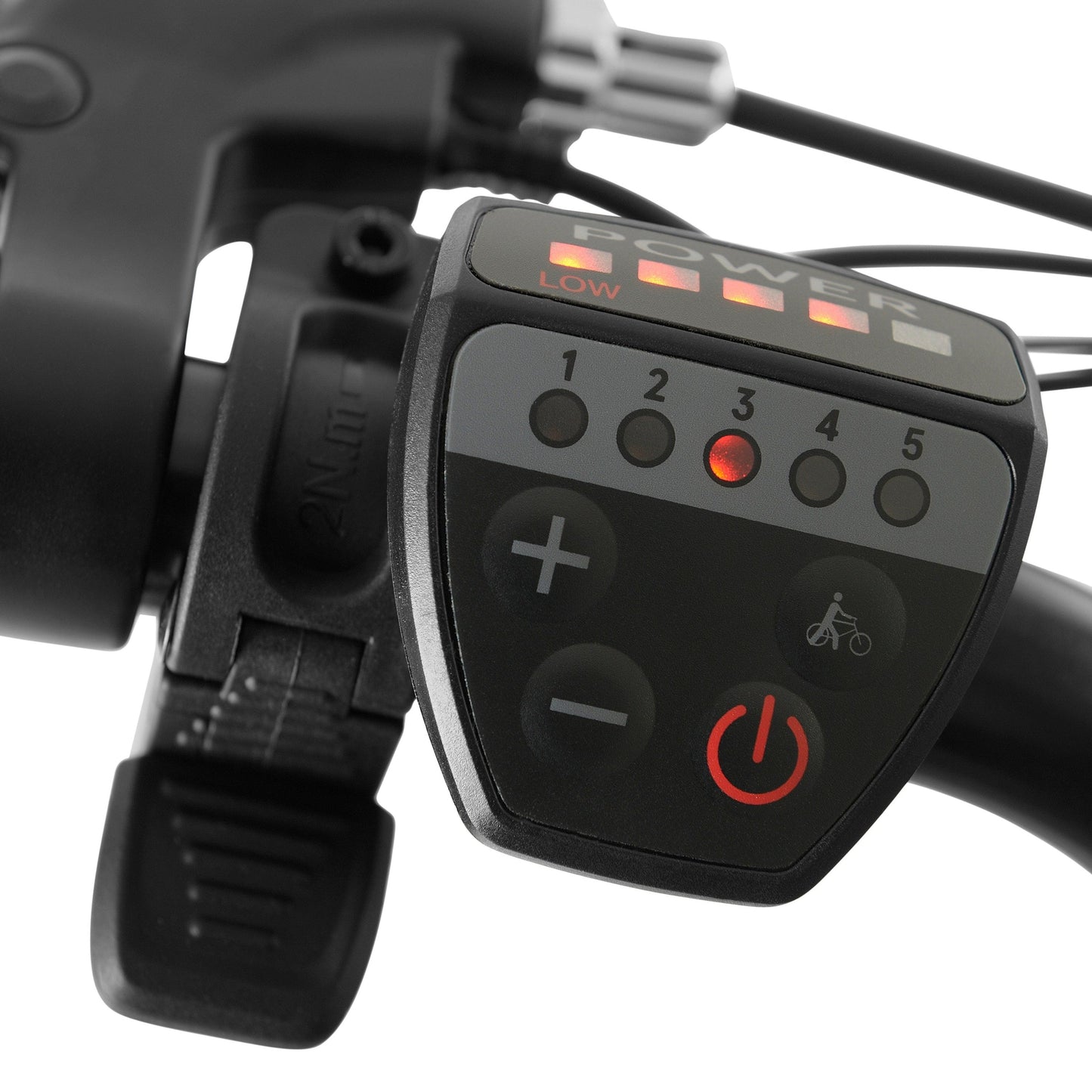

Quick Access to Controls
Handlebar-mounted, easy-read LED control panel indicates battery level and controls Pedal Assist and Walk Mode.
Press to Go
Easy-to-reach thumb throttle puts 350W worth of power at your fingertips and conveniently sits right next to the control panel for full hands-on-handlebar control.
Durable, Long-Lasting, High Range
Li-ion battery offers a range of up to 38 miles. Charges within 4-5 hours.
Quiet, Consistent Braking
Tektro mechanical disc brakes are generally easier to maintain, and ebike-specific 180mm rotors offer more reliable stopping power, so you can brake confidently in all kinds of weather conditions.
Specification
FRAMESET
- Sizes16.5" Step Through
- Material Steel
- Dropouts 1x rear fender eyelets, rear rack mounts,
- Fork Steel
WHEELSET
- Rims Alloy 36H for disc brake
- Hubs Alloy bolt on 17mm nut
- Spokes13G/2.3mm w/brass nipples
- Tires26 x 3.0
E-POWER SYSTEM
- 36V/350W Motor
- Drive Mode, DisplayPAS/Thumb throttle Left side , cadence sensor
- Charge Time (empty to full) Approximately 4.5hrs.
- 36V/350W range38+
DRIVETRAIN

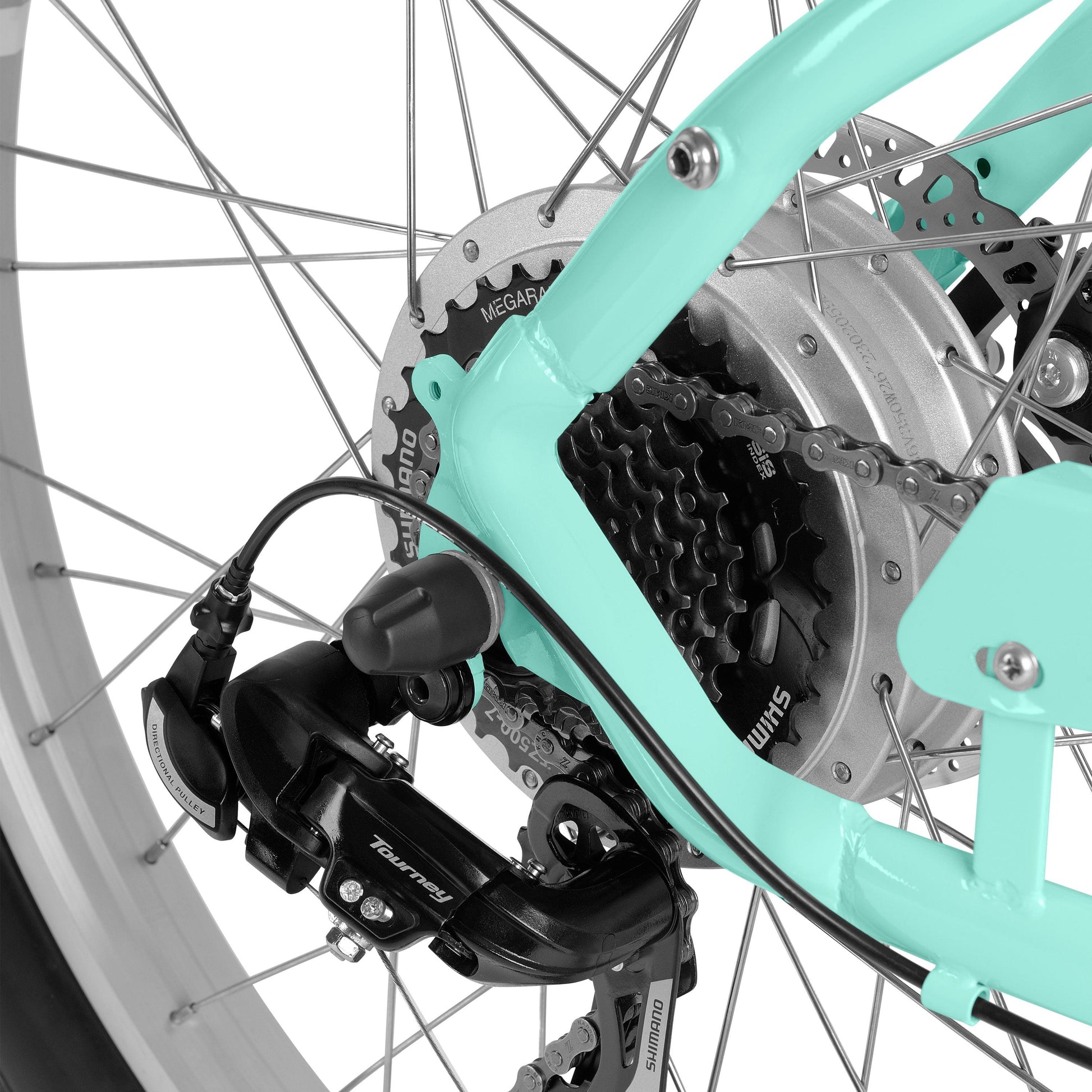

- Rear Derailleur Shimano Tourney 7S
- Shifter(s)Shimano Tourney 7 speed
- Crankset42T alloy
- Chain KMC Z7
- BBJIS square taper cartridge
- Freewheel/Cog Shimano 14-34T
COMPONENTS
- Headset Threaded 11/8"
- Brakes Tektro mechanical with 180mm rotors and semi-metalic pads [OEM Replacement Pads: Tektro P20.11/Resin for 2-Piston (QBP#BR7193). Other pads that will fit: Tektro E10.11/Organic, A11TS/Sintered, A10YS.]
- Handlebars Alloy cruiser
- Grips Comfort with alloy lock rings
- Stem Alloy quill
- Saddle Comfort Cruiser
- Seatpost Aluminum 28.6mm diameter, 350mm length
- Seatpost ClampAlloy QR
- Pedals PP platform 9/16"
EXTRAS
- Kickstand Rear mount, adjustable, aluminum alloy

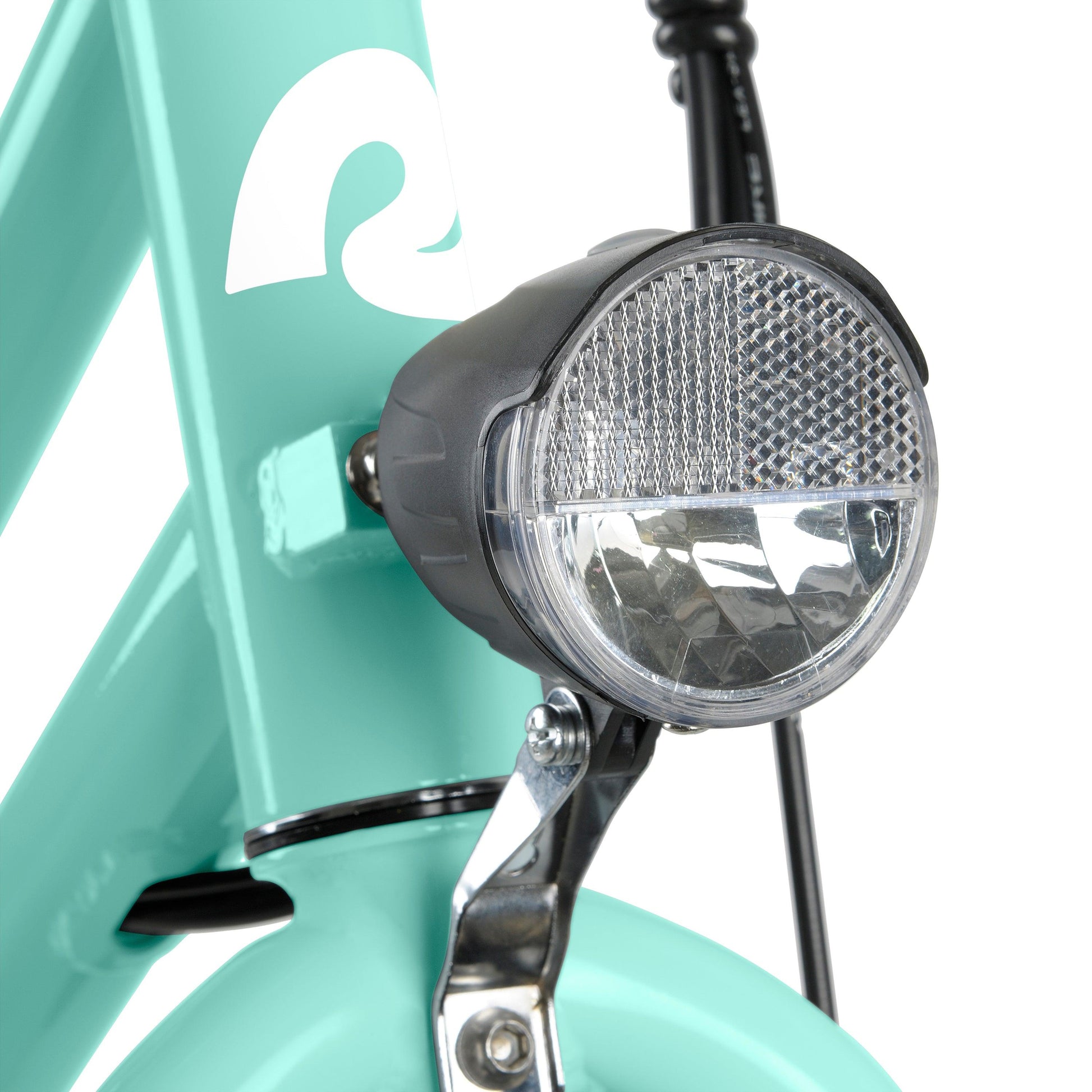

- Light(s)Battery operated front and rear lights
- Chaincover Full Coverage
- Tools4 pcs: 15mm open/box, 10mm open/box, 5/6mm hex key, cross (Phillips) screwdriver
- Recommended Weight Limit350lbs
- Item Weight 58.5 lbs (battery included)
